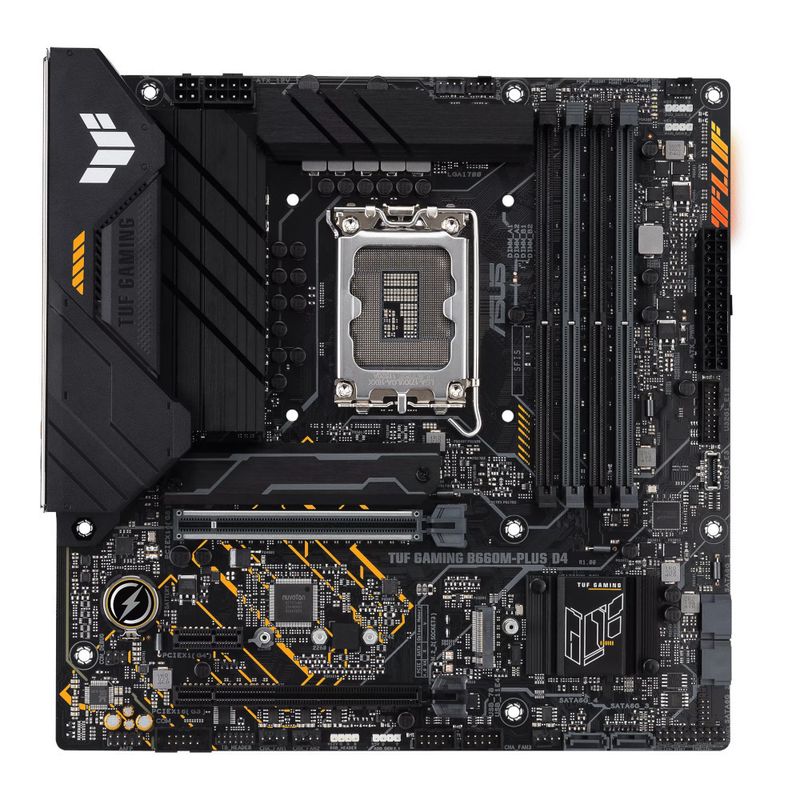

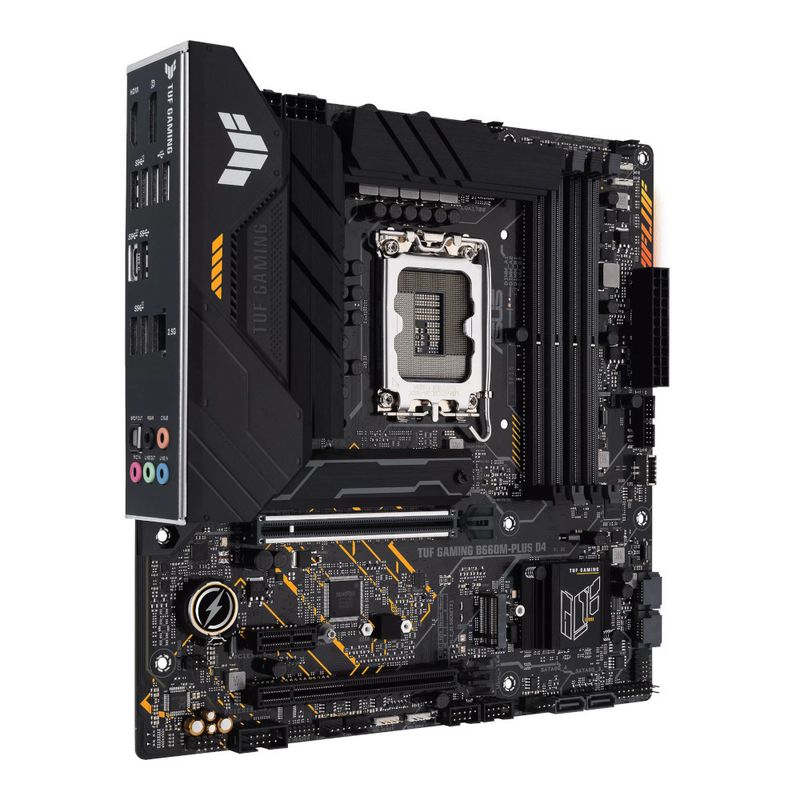

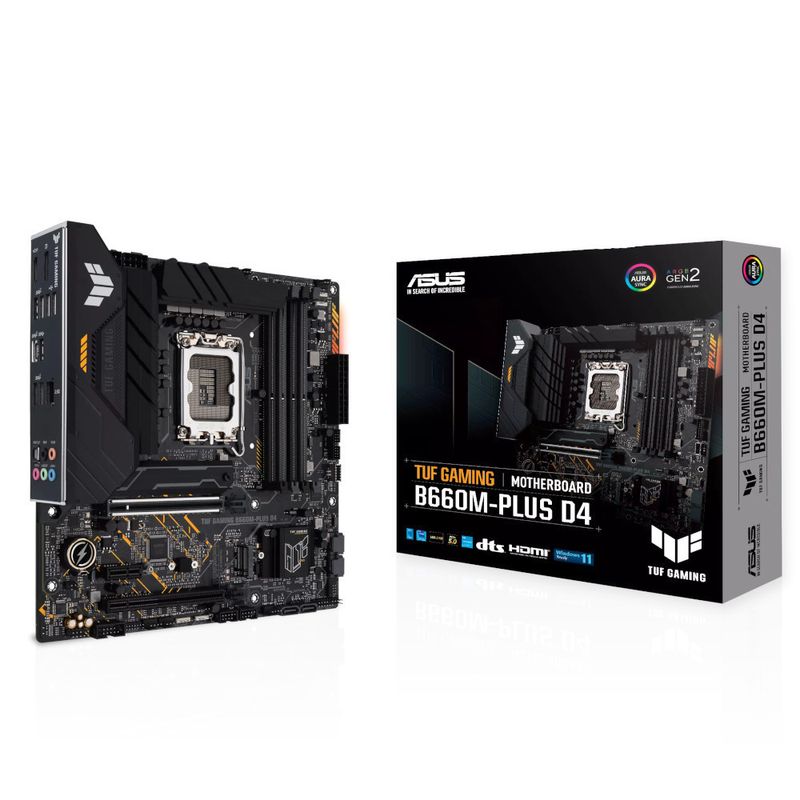

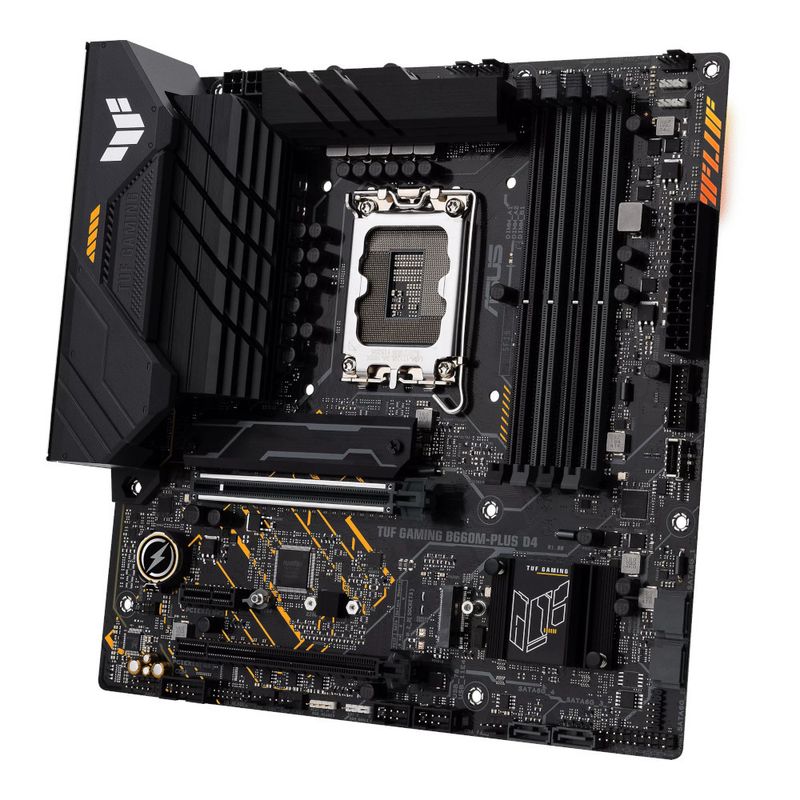

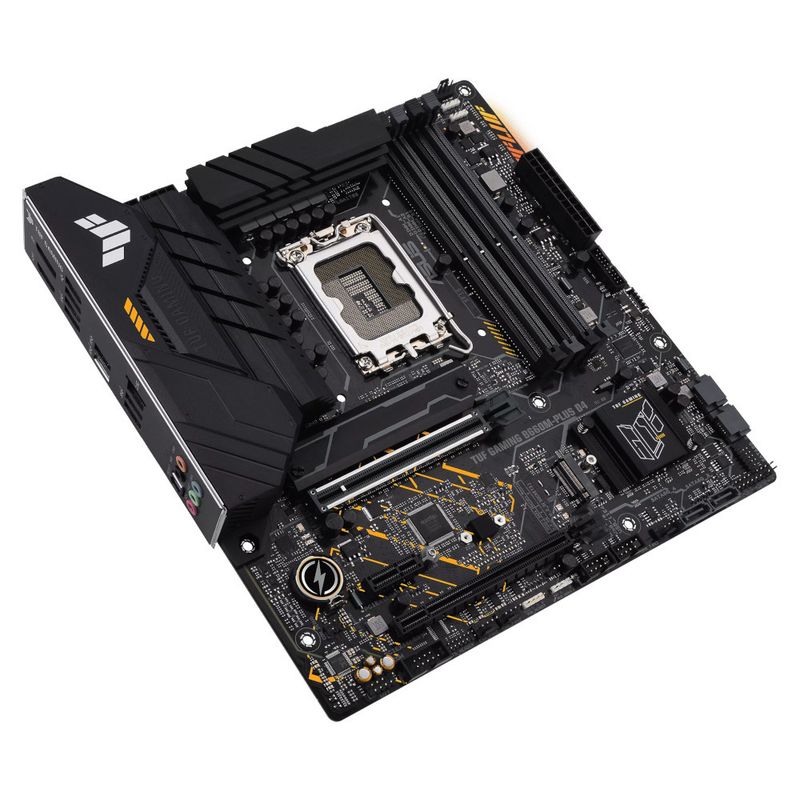

Placa Mãe Asus para Intel 1700 B660M Tuf Gaming Plus D4 4xDDR4 mATX 90MB1940-C1BAY0

Placa Mãe Asus para Intel 1700 B660M Tuf Gaming Plus D4 4xDDR4 mATX 90MB1940-C1BAY0

CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memória
4 x DIMM, Max. 128GB, DDR4
Suporta Intel Extreme Memory Profile (XMP)

Gráficos
1x DisplayPort 1.4
1x DisplayPort
1x HDMI port

Slots de Expansão
Intel 12th Gen Processors
1x PCIe 5.0 x16 slot
Intel B660 Chipset
1x PCIe 3.0 x16 slot (supports x4 mode)
1x PCIe 4.0 x1 slot

Armazenamento
Suporta 2x M.2 slots and 4 x SATA 6Gb/s ports
Total supports 2x M.2 slots and 4x SATA 6Gb/s ports
Intel 12th Gen Processors

Rede
1x Realtek 2.5Gb Ethernet
TUF LANGuard
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

USB
USB traseira:Total 8 ports
Total 8 ports
1x USB 3.2 Gen 2x2 port (1x USB Type-C)
4x USB 3.2 Gen 2 ports (4x Type-A)
1x USB 3.2 Gen 1 port (1x Type-A)
2x USB 2.0 ports (2 x Type-A)

USB dianteira
Total 7 portas
1x USB 3.2 Gen 1 connector (supports USB Type-C)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports

Áudio
Codec de áudio Realtek
Realtek 7.1 Surround Sound High Definition Audio CODEC

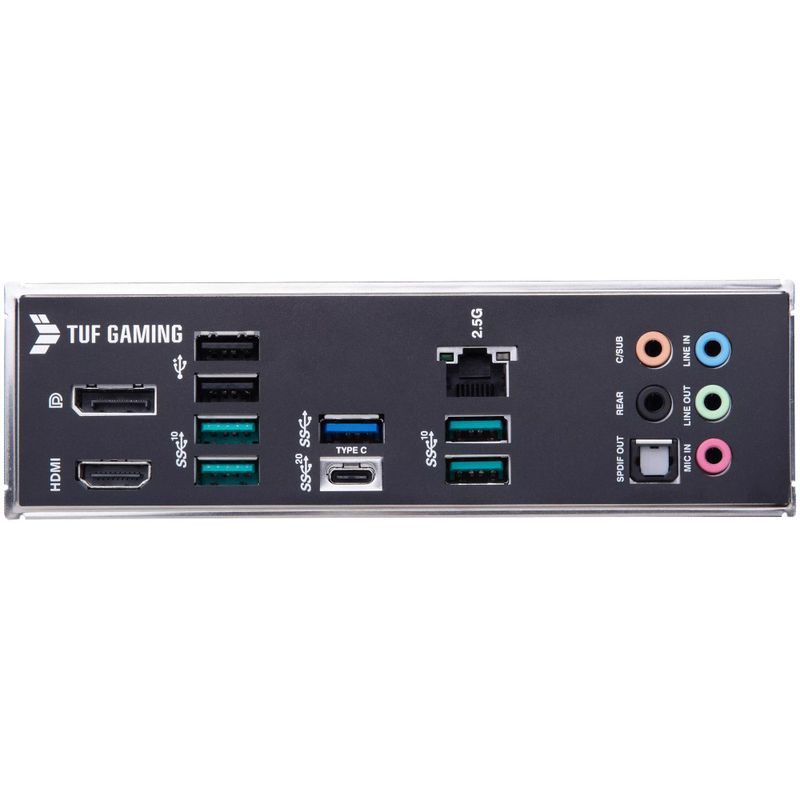

Portas I/O no painel Traseiro
1x USB 3.2 Gen 2x2 port (1x USB Type-C)
4x USB 3.2 Gen 2 ports (4x Type-A)
1x USB 3.2 Gen 1 port (1x Type-A)
2x USB 2.0 ports (2x Type-A)
1x DisplayPort
1x HDMI port
1x Realtek 2.5Gb Ethernet port
5x Audio jacks
1x Optical S/PDIF out port

Painel Interno
1x chapa TB (para placa TB adicional)
Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers

Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector

Storage related
2x M.2 slots (Key M)
4x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Cables
2x SATA 6Gb/s cables

Miscellaneous
1x ASUS Wi-Fi moving antennas
1x M.2 Rubber Package
1x M.2 SSD screw package
1x TUF Gaming sticker

Installation Media
1x Support DVD

Documentation
1x TUF Certification card
1x User guide

Formato
microATX
24,4 cm x 24,4 cm

Imagens de caráter ilustrativo

Informações divulgadas de acordo com o manual do fabricante

Produto novo na caixa, lacrado com NF e garantia do fabricante.

Em caso de duvidas sobre informações técnicas, utilização, limitações e manuseio do produto, verifique o manual do fabricante.

EAN: 4711081516897
